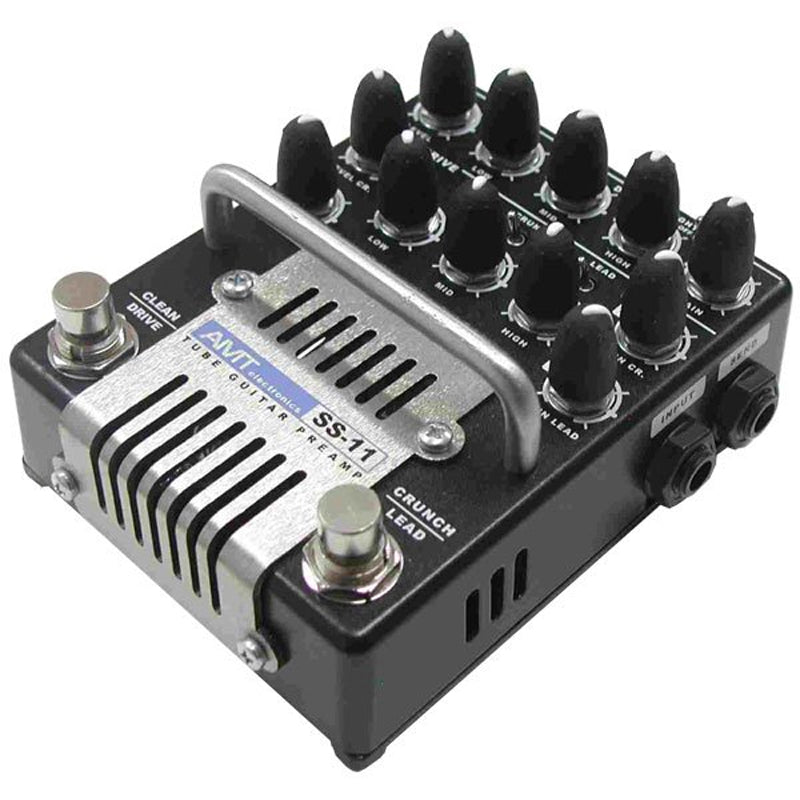

tube effect pedal AMT SS-11A 3-Channel Dual Tube Guitar Preamp (Classic Mod) A Pedal

tube effect pedal AMT SS-11A 3-Channel Dual Tube Guitar Preamp (Classic Mod) A PedalDescription: While creating SS 11, AMT was guided by the motto minimum size with maximum functionality for full tube overdrive with the highest quality components. The SS 11 is brother to the SS 20, but with added controls and increased flexibility. The SS 11 is available in two different versions, the A (Classic) and the B (Modern) versions. Both these versions have the same pedal layout, controls, and specifications; however the gain structure and

Description:

While creating SS-11, AMT was guided by the motto - minimum size with maximum functionality for full tube overdrive with the highest quality components. The SS-11 is brother to the SS-20, but with added controls and increased flexibility. The SS-11 is available in two different versions, the A (Classic) and the B (Modern) versions. Both these versions have the same pedal layout, controls, and specifications; however the gain structure and voicing is slightly different between the two.

The SS-11A Classic version is designed to cover all the classic jazzy, overdrive, and rock sounds of vintage tube amplifiers. The gain circuitry is slightly less aggressive than the SS-11B. However, don't misjudge the A unit. It has plenty of bite and dirt, as seen in the demo videos. The SS-11A is a perfect choice for the guitarist who wants to cover everything!

Features of SS-11 Design:
• Fully tube-based 4 - stage overdrive channel with DUAL TUBE design (2x12AH7 tubes) with high-voltage anode voltage (+300 V).
• Three separate channels: CLEAN / OVERDRIVE / LEAD
• Individual gain sensitivity and output level controls for clean and crunch/lead channels.
• TREBLE SHIFT toggle switch to enter bright mode for that added punch of high end.
• FX LOOP for external effects.
• OUTPUT jack for connecting to both specialized guitar amplifiers with a standard level of 0 dB (GUITAR AMP mode) and a CAB SIM MIXER out with a standard level of -10dB and a guitar cabinet simulation.
• The preamp outputs are equipped with sophisticated solid-state buffers.
• SS-11 incorporates new field-effect transistor-based guitar cabinet impulse response emulator processing. Improved naturalness of sound when connected to line input.
• Special attention was paid to transistors anode power quality: preamp uses a specially designed high-voltage transformer minimizing the penetration of impulse noises into amplified signal.

Description of SS-11 Channels:
LEAD channel provides thick viscous sound for playing both chunky rhythm parts and singing solos with excellent presence. TREBLE SHIFT toggle to take your lead sound into bright mode, similar to the good old "Treble Booster" pedals in the 80's that guitarists used to enhance their solos.

OVERDRIVE channel features a more open structure of the sound. This is the SS-11's sweet spot! VERY tubey and saturated sounding, much like that of the classic tube amps of the 70's and 80's! Wide range of sensitivity adjustment results in the sound starting from light crunch to thick and bright lead channel-like sound. Natural tube tone. If you're looking for something other than that dull sounding solid-state OD or TS clone sound, then THIS IS IT.

CLEAN channel focuses on crystal clarity clean sound. Low, Mid, and High controls for tweaking your sound; as well as and TREBLE SHIFT toggle for adjusting high end response.

Direct to Amplifier or Computer/DAW/Mixer
As all AMT pedals, the SS-11A is equipped with dual outputs. One for connection to a guitar amplifier, and one for direct connection to a computer, DAW, or mixing device. Into home or studio recording? Never again will you have to connect your mics, preamps, cables, and mic stands to get a great recorded guitar tone. Everything you need is built in to the SS-11. Simply choose the speaker simulated cabinet output, and you're ready to make professional studio-grade recordings with no extra effort!

SPECIFICATIONS:
• Tubes: 12AH7 x 2
• Input Impedance Rear Panel: 1MOhm
• Input Sensitivity Rear Panel: -10dB
• Output Impedance: 10kOhm
• Power Voltage: 12vDC (-)center
• Power Consumption: 600mA or .6A
